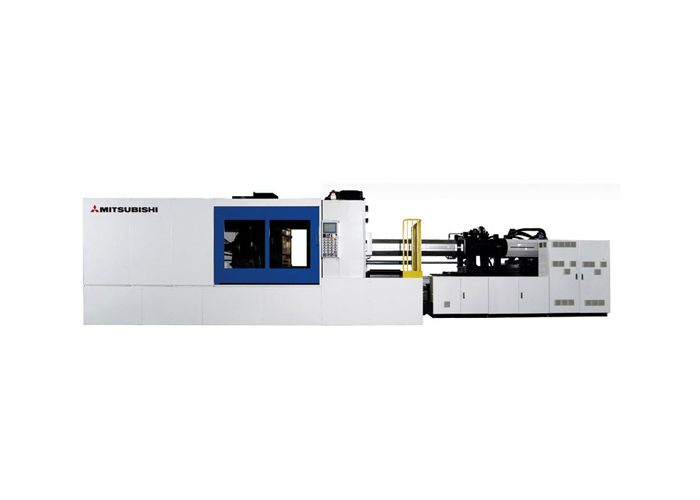

Mitsubishi MMX-Series 2500 Tons Machine
Mitsubishi has developed the latest of its hydraulically-driven injection molding machines -- "the MMX series" -- to meet the needs of emerging economies. The "MMX series" combines the latest technologies with experienced two-platen clamping and injection mechanism, and delivers excellent performance.With the ongoing surge in environmental awareness in recent years, there has been a growing demand, especially among the emerging economies, for injection molding machines that meet the following requirements - - low environmental impact, energy efficiency, high quality, high reliability, high productivity and low price. The latest "MMX series" hydraulic injection molding machines from Mitsubishi fully meet these customer needs.
| Injection Unit | Units | 2500MMX (340) | 2500MMX (470) | 2500MMX (740) |
|---|---|---|---|---|
| Screw Diameter | mm | 135 | 150 | 175 |
| Theoretical Injection Volume | cm³ | 9,660 | 13,200 | 21,000 |
| Injection Shot Mass (PS) | g | 8,890 | 12,100 | 19,300 |
| Injection Shot Mass (PE) | g | 7,150 | 9,770 | 15,500 |
| Max. Injection Pressure | MPa(kgf/cm2) | 177(1,800) | - | 161(1,640) |
| Injection Speed | mm/sec | 88 | 76 | 66 |
| Injection Rate | cm³/sec | 1260 | 1350 | 1,595 |
| Plasticizing Capacity Polystyrene (PS) | kg/hr | 700 | 750 | 805 |
| Screw Speed | rpm | 112 | 110 | 90 |
| Clamping Unit | Units | 2500MMX (values) |
|---|---|---|
| Mould Clamping Force | kN (tonf) | 24,516(2,500) |
| Mould Opening Force | kN (tonf) | 2,059(210) |
| Mold Closing Speed (High) | m/min | 45 |
| Mold Opening Speed (High) | m/min | 45 |
| Platen Size (H x V) | mm | 2,550×2,300 |
| Tie-bar Space (H x V) | mm | 2,000×1,650 |
| Clamp Capacity Stroke | mm | 2,800 |
| Max. Daylight | mm | 3,600 |
| Mould Height | mm | 800~1,700 |
| Ejector Force | kN (tonf) | 490(50) |
| Ejector Stroke | mm | 400 |
| General Unit | Units | 2500MMX (340) | 2500MMX (470) | 2500MMX (470) |
|---|---|---|---|---|
| Electric motor for pump | kW | 177 | 200 | 223 |
| Electric Heater capacity (380V/50Hz) | kW | 67.5 | 84.8 | 111.7 |
| Total hyd. system oil quantity[ In tank ] | L | 2,600 [2,000] | 3,200 [2,500] | 3,900 [3,100] |
| Machine dimensions (L) | m | 13.9 | 15.0 | 15.3 |
| Machine dimensions (W) | m | - | 4.3 | - |
| Machine dimensions (H) | m | - | 3.5 | - |
| Shipping Mass | tons | 118 | 124 | 132 |
